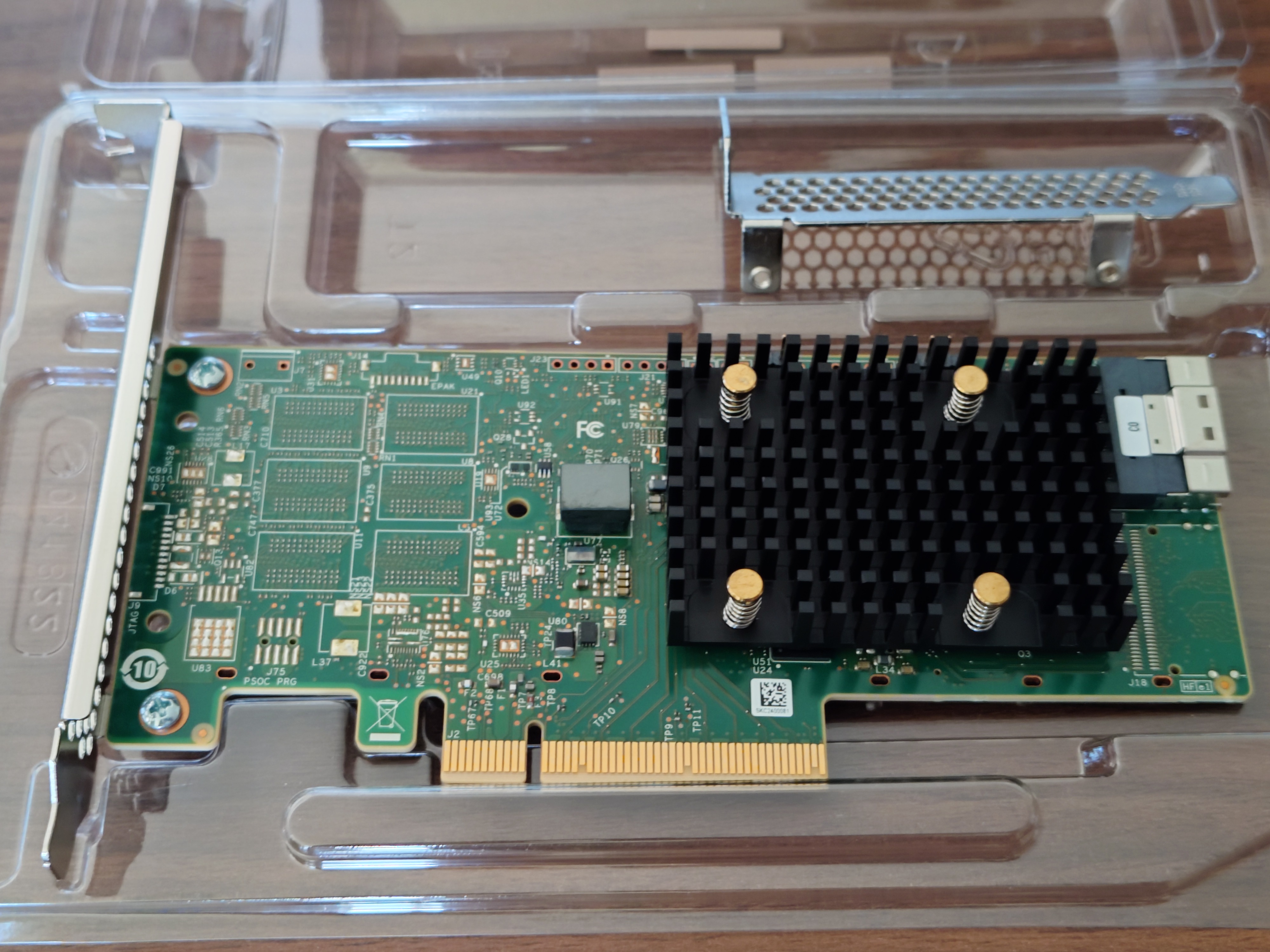

Picture of the "9500-8i" with product ID "05-50077-03" (click to enlarge):
Overview
I bought this "9500-8i" as a replacement for my older "9211-8i", to have lower temperatures in my Linux home server and to then recycle the old "9211-8i" by moving it to my offline-backup-NAS.
Pros:
-
Compared to the old card the firmware updates are A LOT simpler:
just download the program "storcli64" and the card firmware+BIOS, then flash them. - The "9500-8i" uses a few less watts (respectively radiates less heat).
- Uses the Linux module "mpt3sas" (same one used by my old card), which is integrated in the mainline kernel since many years and is therefore well tested.
- Supports both SATA and SAS drives (NVMe as well, but I read negative reviews about that so I ended up loading the firmware that supports only SATA & SAS).
Cons:
-
The "9500-8i" is expensive (as of Sept.2026):
-
I bought the model that has the product ID "05-50077-03" for CHF 210 (~260 USD as of Sept.2026).
The one that has the product ID "05-50134-01" (different radiator? newer revision/module? retail version?) costs a lot more (CHF 320 as of Sept.2026).

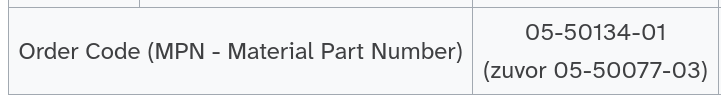

Fyi "www.thomas-krenn.com" mentions as of Sept.2026 that "05-50134-01" is the successor of "05-50077-03":
- My card came without cable, so I had to buy as well a "Microchip ACK I SLIMSASX8 8SATAX1 0.8M" ("SFF-8654" connector with 8 SATA/SAS plugs), which was expensive as well (CHF 68 -> USD 84).
-
-
The card supports only the "IT"-mode ("Initiator Target"), which means that it does not have any kind of RAID functionality (therefore no "IR"/"Integrated RAID" functionality).
Not relevant for me as I don't want to be locked-in with a specific vendor and as I'm anyway using ZFS and/or Linux Software RAID.
Details
The software and the card firmware + BIOS can be downloaded from here: https://www.broadcom.com/products/storage/host-bus-adapters/sas-nvme-9500-8i
I used the "storcli64" utility located in the "Linux_Light" subdirectory.
1) LSPCI outputs
# lspci -kn
24:00.0 0107: 1000:00e6
Subsystem: 1000:4060
Kernel driver in use: mpt3sas
Kernel modules: mpt3sas# lspci -kv
24:00.0 Serial Attached SCSI controller: Broadcom / LSI Fusion-MPT 12GSAS/PCIe Secure SAS38xx
Subsystem: Broadcom / LSI 9500-8i Tri-Mode HBA
Flags: bus master, fast devsel, latency 0, IRQ 43, IOMMU group 28
Memory at e2200000 (64-bit, prefetchable) [size=1M]
Memory at e2100000 (64-bit, prefetchable) [size=1M]
Memory at fbc00000 (32-bit, non-prefetchable) [size=1M]
I/O ports at f000 [size=256]
Expansion ROM at fbd00000 [disabled] [size=256K]
Capabilities: [40] Power Management version 3
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Capabilities: [70] Express Endpoint, IntMsgNum 0
Capabilities: [b0] MSI-X: Enable+ Count=128 Masked-
Capabilities: [100] Advanced Error Reporting
Capabilities: [148] Power Budgeting <?>
Capabilities: [158] Alternative Routing-ID Interpretation (ARI)
Capabilities: [168] Secondary PCI Express
Capabilities: [188] Physical Layer 16.0 GT/s
Capabilities: [1b0] Lane Margining at the Receiver
Capabilities: [218] Dynamic Power Allocation <?>
Capabilities: [248] Vendor Specific Information: ID=0002 Rev=4 Len=100 <?>
Capabilities: [348] Vendor Specific Information: ID=0001 Rev=1 Len=038 <?>
Capabilities: [380] Data Link Feature <?>
Kernel driver in use: mpt3sas
Kernel modules: mpt3sas# lspci -kvv
24:00.0 Serial Attached SCSI controller: Broadcom / LSI Fusion-MPT 12GSAS/PCIe Secure SAS38xx
Subsystem: Broadcom / LSI 9500-8i Tri-Mode HBA
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupts: pin B disabled, MSI(X) routed to IRQ 186-217
IOMMU group: 28
Region 0: Memory at e2200000 (64-bit, prefetchable) [size=1M]
Region 2: Memory at e2100000 (64-bit, prefetchable) [size=1M]
Region 4: Memory at fbc00000 (32-bit, non-prefetchable) [size=1M]
Region 5: I/O ports at f000 [size=256]
Expansion ROM at fbd00000 [disabled] [size=256K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] Express (v2) Endpoint, IntMsgNum 0
DevCap: MaxPayload 1024 bytes, PhantFunc 0, Latency L0s unlimited, L1 <64us
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W TEE-IO-
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 16GT/s, Width x8, ASPM L0s L1, Exit Latency L0s unlimited, L1 <64us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- FltModeDis-
LnkSta: Speed 8GT/s (downgraded), Width x4 (downgraded)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp+ 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-
AtomicOpsCtl: ReqEn-
IDOReq- IDOCompl- LTR- EmergencyPowerReductionReq-
10BitTagReq- OBFF Disabled, EETLPPrefixBlk-
LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-
LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: Upstream Port, FltMode-
Capabilities: [b0] MSI-X: Enable+ Count=128 Masked-
Vector table: BAR=0 offset=00002000
PBA: BAR=0 offset=00003000
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP-
ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP-
ECRC- UnsupReq- ACSViol- UncorrIntErr+ BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+
ECRC- UnsupReq- ACSViol- UncorrIntErr+ BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr- CorrIntErr- HeaderOF-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr+ HeaderOF+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [148 v1] Power Budgeting <?>
Capabilities: [158 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 0
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [168 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Capabilities: [188 v1] Physical Layer 16.0 GT/s
Phy16Sta: EquComplete- EquPhase1- EquPhase2- EquPhase3- LinkEquRequest-
Capabilities: [1b0 v1] Lane Margining at the Receiver
PortCap: Uses Driver-
PortSta: MargReady- MargSoftReady-
Capabilities: [218 v1] Dynamic Power Allocation <?>
Capabilities: [248 v1] Vendor Specific Information: ID=0002 Rev=4 Len=100 <?>
Capabilities: [348 v1] Vendor Specific Information: ID=0001 Rev=1 Len=038 <?>
Capabilities: [380 v1] Data Link Feature <?>
Kernel driver in use: mpt3sas
Kernel modules: mpt3sas2) Original state of the card
# ./storcli64 show
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Status Code = 0
Status = Success
Description = None
Number of Controllers = 1
Host Name = <redacted>
Operating System = Linux 6.18.48-gentoo
StoreLib IT Version = 07.3808.0200.0000
IT System Overview :
==================
--------------------------------------------------------------------------
Ctl Model AdapterType VendId DevId SubVendId SubDevId PCI Address
--------------------------------------------------------------------------
0 HBA 9500-8i SAS3808(A0) 0x1000 0xE6 0x1000 0x4060 00:24:00:00
--------------------------------------------------------------------------# ./storcli64 /c0 show
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = None
Product Name = HBA 9500-8i
Serial Number = SKC2400081
SAS Address = 500062b20f1c0c80
PCI Address = 00:24:00:00
System Time = 09/03/2026 11:50:46
FW Package Build = 14.00.00.00
FW Version = 14.00.00.00
BIOS Version = 09.27.00.00_14.00.00.00
NVDATA Version = 14.11.00.06
Driver Name = mpt3sas
Driver Version = 54.100.00.00
Bus Number = 36
Device Number = 0
Function Number = 0
Domain ID = 0
Vendor Id = 0x1000
Device Id = 0xE6
SubVendor Id = 0x1000
SubDevice Id = 0x4060
Board Name = HBA 9500-8i
Board Assembly = 03-50077-03002
Board Tracer Number = SKC2400081
Security Protocol = None
Package Stamp Mismatch = NoThe versions of the firmware & BIOS upon delivery were therefore:
- FW Version = 14.00.00.00
- NVDATA Version = 14.11.00.06
- BIOS Version = 09.27.00.00_14.00.00.00
# ./storcli64 /c0 show all
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = None
Basics :
======
Controller = 0
Adapter Type = SAS3808(A0)
Model = HBA 9500-8i
Serial Number = SKC2400081
Current System Date/time = 09/03/2026 11:54:38
Concurrent commands supported = 6656
SAS Address = 500062b20f1c0c80
PCI Address = 00:24:00:00
Version :
=======
Firmware Package Build = 14.00.00.00
Firmware Version = 14.00.00.00
Bios Version = 09.27.00.00_14.00.00.00
NVDATA Version = 14.11.00.06
Driver Name = mpt3sas
Driver Version = 54.100.00.00
PCI Version :
===========
Vendor Id = 0x1000
Device Id = 0xE6
SubVendor Id = 0x1000
SubDevice Id = 0x4060
Host Interface = PCIE
Device Interface = PCIe-16GT/s
Bus Number = 36
Device Number = 0
Function Number = 0
Domain ID = 0
Pending Images in Flash :
=======================
Image name = No pending images
Status :
======
Controller has booted into certificate provision mode = No
Package Stamp Mismatch = No
Supported Adapter Operations :
============================
Support more than 8 Phys = Yes
Support Enclosure Enumeration = Yes
Support Allowed Operations = Yes
Support Multipath = Yes
Support Security = No
support EKM = No
Support Secure Boot = Yes
Support Platform Security = No
Support Package Stamp Mismatch Reporting = Yes
Support PSOC Update = No
Support PSOC Part Information = No
Support PSOC Version Information = No
Supported PD Operations :
=======================
Support Physical Link Speed = Yes
HwCfg :
=====
ChipRevision = A0
BatteryFRU = N/A
Front End Port Count = 1
Backend Port Count = 11
Serial Debugger = Absent
NVRAM Size = 0KB
Flash Size = 16MB
Temperature Sensor for ROC = Present
Temperature Sensor for Controller = Absent
ROC temperature(Degree Celsius) = 55
Boot :
====
Max Drives to Spinup at One Time = 2
Maximum number of direct attached drives to spin up in 1 min = 60
Delay Among Spinup Groups (sec) = 2
Capabilities :
============
Supported Drives = SAS, SATA, NVMe
Enable JBOD = Yes
Max Parallel Commands = 6656
Max SGE Count = 128
Max Data Transfer Size = 32 sectors
Secure Boot :
===========
Secure Boot Enabled = No
Controller in Soft Secure Mode = No
Controller in Hard Secure Mode = No
Key Update Pending = No
Remaining Secure Boot Key Slots = 0
Security Protocol properties :
============================
Security Protocol = None3a) Flashing the new firmware
# ./storcli64 /c0 download file=/root/hba-lsi-broadcom-9500-8i/firmware/9500_8i_Pkg_P39_MIXED_FW_BIOS_UEFI/Firmware/HBA_9500-8i_SAS_SATA_Profile.bin
Downloading image.Please wait...
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = CRITICAL! Flash successful. Please power cycle the system for the changes to take effectAfter a cold reboot:
# ./storcli64 /c0 show
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = None
Product Name = HBA 9500-8i
Serial Number = SKC2400081
SAS Address = 500062b20f1c0c80
PCI Address = 00:24:00:00
System Time = 09/03/2026 12:17:45
FW Package Build = 39.00.00.00
FW Version = 39.00.00.00
BIOS Version = 09.27.00.00_14.00.00.00
NVDATA Version = 39.02.00.11
PSOC FW Version = 0x003D
PSOC Part Number = 14790
Driver Name = mpt3sas
Driver Version = 54.100.00.00
Bus Number = 36
Device Number = 0
Function Number = 0
Domain ID = 0
Vendor Id = 0x1000
Device Id = 0xE6
SubVendor Id = 0x1000
SubDevice Id = 0x4060
Board Name = HBA 9500-8i
Board Assembly = 03-50077-03002
Board Tracer Number = SKC2400081
Security Protocol = None
Package Stamp Mismatch = Yes
Summary after having flashed the firmware:
- FW Version = 39.00.00.00
- NVDATA Version = 39.02.00.11
- BIOS Version = 09.27.00.00_14.00.00.00
-
Package Stamp Mismatch = Yes
(expected, as I didn't update the card's BIOS yet)
Full output:
# ./storcli64 /c0 show all
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = None
Basics :
======
Controller = 0
Adapter Type = SAS3808(A0)
Model = HBA 9500-8i
Serial Number = SKC2400081
Current System Date/time = 09/03/2026 12:18:39
Concurrent commands supported = 7424
SAS Address = 500062b20f1c0c80
PCI Address = 00:24:00:00
Version :
=======
Firmware Package Build = 39.00.00.00
Firmware Version = 39.00.00.00
Bios Version = 09.27.00.00_14.00.00.00
NVDATA Version = 39.02.00.11
PSOC FW Version = 0x003D
PSOC Part Number = 14790
Driver Name = mpt3sas
Driver Version = 54.100.00.00
PCI Version :
===========
Vendor Id = 0x1000
Device Id = 0xE6
SubVendor Id = 0x1000
SubDevice Id = 0x4060
Host Interface = PCIE
Device Interface = SAS-12G
Bus Number = 36
Device Number = 0
Function Number = 0
Domain ID = 0
Pending Images in Flash :
=======================
Image name = No pending images
Status :
======
Controller has booted into certificate provision mode = No
Package Stamp Mismatch = Yes
Supported Adapter Operations :
============================
Support more than 8 Phys = Yes
Support Enclosure Enumeration = Yes
Support Allowed Operations = Yes
Support Multipath = Yes
Support Security = Yes
support EKM = No
Support Secure Boot = Yes
Support Platform Security = No
Support Package Stamp Mismatch Reporting = Yes
Support PSOC Update = Yes
Support PSOC Part Information = Yes
Support PSOC Version Information = Yes
Supported PD Operations :
=======================
Support Physical Link Speed = Yes
HwCfg :
=====
ChipRevision = A0
BatteryFRU = N/A
Front End Port Count = 1
Backend Port Count = 11
Serial Debugger = Absent
NVRAM Size = 0KB
Flash Size = 16MB
Temperature Sensor for ROC = Present
Temperature Sensor for Controller = Absent
ROC temperature(Degree Celsius) = 49
Boot :
====
Max Drives to Spinup at One Time = 2
Maximum number of direct attached drives to spin up in 1 min = 60
Delay Among Spinup Groups (sec) = 2
Capabilities :
============
Supported Drives = SAS, SATA
Enable JBOD = Yes
Max Parallel Commands = 7424
Max SGE Count = 128
Max Data Transfer Size = 32 sectors
Secure Boot :
===========
Secure Boot Enabled = Yes
Controller in Soft Secure Mode = No
Controller in Hard Secure Mode = Yes
Key Update Pending = No
Remaining Secure Boot Key Slots = 7
Security Protocol properties :
============================
Security Protocol = NonePlease note "Supported Drives = SAS, SATA" (the "NVMe" has disappeared as I used the firmware file that does not support NVMe)
3b) Flash the new BIOS
# ./storcli64 /c0 download bios file=/root/hba-lsi-broadcom-9500-8i/firmware/9500_8i_Pkg_P39_MIXED_FW_BIOS_UEFI/SAS35BIOS_UEFI_SAS3.5_IT_X64_ARM/IT_HBA_X64_BIOS_PKG_E6.rom
Downloading image.Please wait...
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = Bios Flash Successful
Remark:
maybe in some cases you need to specify "./storcli64 /c0 download uefi..." instead of "./storcli64 /c0 download bios..." - not sure, in my case "bios" worked without problems (but I do have "Secure Boot" disabled, not sure if that might make a difference).
After a cold reboot:
# ./storcli64 /c0 show
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = None
Product Name = HBA 9500-8i
Serial Number = SKC2400081
SAS Address = 500062b20f1c0c80
PCI Address = 00:24:00:00
System Time = 09/03/2026 12:30:49
FW Package Build = 39.00.00.00
FW Version = 39.00.00.00
BIOS Version = 09.77.00.00_39.00.00.00
NVDATA Version = 39.02.00.11
PSOC FW Version = 0x003D
PSOC Part Number = 14790
Driver Name = mpt3sas
Driver Version = 54.100.00.00
Bus Number = 36
Device Number = 0
Function Number = 0
Domain ID = 0
Vendor Id = 0x1000
Device Id = 0xE6
SubVendor Id = 0x1000
SubDevice Id = 0x4060
Board Name = HBA 9500-8i
Board Assembly = 03-50077-03002
Board Tracer Number = SKC2400081
Security Protocol = None
Package Stamp Mismatch = NoTherefore:
- FW Version = 39.00.00.00
- NVDATA Version = 39.02.00.11
- BIOS Version = 09.77.00.00_39.00.00.00
- Package Stamp Mismatch = No
Full output:
# ./storcli64 /c0 show all
CLI Version = 007.3811.0000 July 22, 2026
Operating system = Linux 6.18.48-gentoo
Controller = 0
Status = Success
Description = None
Basics :
======
Controller = 0
Adapter Type = SAS3808(A0)
Model = HBA 9500-8i
Serial Number = SKC2400081
Current System Date/time = 09/03/2026 12:31:15
Concurrent commands supported = 7424
SAS Address = 500062b20f1c0c80
PCI Address = 00:24:00:00
Version :
=======
Firmware Package Build = 39.00.00.00
Firmware Version = 39.00.00.00
Bios Version = 09.77.00.00_39.00.00.00
NVDATA Version = 39.02.00.11
PSOC FW Version = 0x003D
PSOC Part Number = 14790
Driver Name = mpt3sas
Driver Version = 54.100.00.00
PCI Version :
===========
Vendor Id = 0x1000
Device Id = 0xE6
SubVendor Id = 0x1000
SubDevice Id = 0x4060
Host Interface = PCIE
Device Interface = SAS-12G
Bus Number = 36
Device Number = 0
Function Number = 0
Domain ID = 0
Pending Images in Flash :
=======================
Image name = No pending images
Status :
======
Controller has booted into certificate provision mode = No
Package Stamp Mismatch = No
Supported Adapter Operations :
============================
Support more than 8 Phys = Yes
Support Enclosure Enumeration = Yes
Support Allowed Operations = Yes
Support Multipath = Yes
Support Security = Yes
support EKM = No
Support Secure Boot = Yes
Support Platform Security = No
Support Package Stamp Mismatch Reporting = Yes
Support PSOC Update = Yes
Support PSOC Part Information = Yes
Support PSOC Version Information = Yes
Supported PD Operations :
=======================
Support Physical Link Speed = Yes
HwCfg :
=====
ChipRevision = A0
BatteryFRU = N/A
Front End Port Count = 1
Backend Port Count = 11
Serial Debugger = Absent
NVRAM Size = 0KB
Flash Size = 16MB
Temperature Sensor for ROC = Present
Temperature Sensor for Controller = Absent
ROC temperature(Degree Celsius) = 53
Boot :
====
Max Drives to Spinup at One Time = 2
Maximum number of direct attached drives to spin up in 1 min = 60
Delay Among Spinup Groups (sec) = 2
Capabilities :
============
Supported Drives = SAS, SATA
Enable JBOD = Yes
Max Parallel Commands = 7424
Max SGE Count = 128
Max Data Transfer Size = 32 sectors
Secure Boot :
===========
Secure Boot Enabled = Yes
Controller in Soft Secure Mode = No
Controller in Hard Secure Mode = Yes
Key Update Pending = No
Remaining Secure Boot Key Slots = 7
Security Protocol properties :
============================
Security Protocol = None
